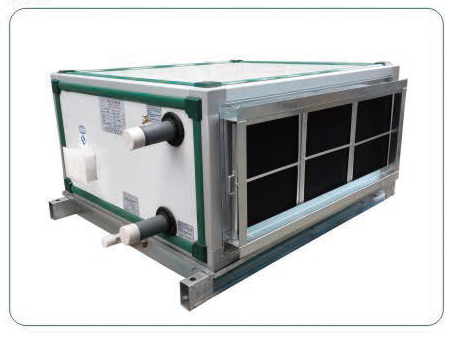

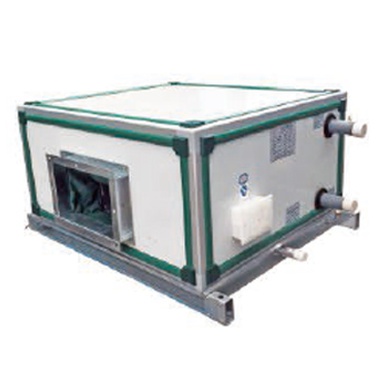

〖XS〗GK series water-cooled cabinet type air conditioning unit

A level - strongbrand story
  • Xinshengshangchi Technology Co.,Ltd.

tp400-678-6995 / 021-59946780

Selection list
序号 采购操作
1
Related products

Overview

GK series cabinet air conditioner unit has accumulated many years of professional production experience for our company. According to user requirements, any combination of multiple functions such as heating, cooling, heating, over-purification, sterilization, etc. can be realized. As a comfortable air conditioner, it is widely used in hotels, shopping malls, airports, hospitals, office buildings and other large public buildings. As a process air conditioner, it is used in electronics, textile, chemical, pharmaceutical, food and other industries.



Advantages

Superior cooling and heating performance
Low noise
Compact structure
Light weight
Easy installation and maintenance
Optional frequency conversion control or SCR stepless adjustment
Variable air volume energy-saving operation according to different working conditions in four seasons

Therefore, it is especially suitable for all kinds of air-conditioning engineering occasions with compact buildings.



Features

Cabinet
The frame of the box is an aluminum alloy frame; the wall panel is made of poly-saddle foam, and high-expansion polyethylene wall panel or glass wool wall panel can also be used. The structure is rust and corrosion resistant, beautiful and durable, and the air leakage rate of the box body is small.

Fan
The low-noise and high-efficiency external rotor centrifugal fan is used. The fan is accurately balanced and corrected to ensure the smooth operation of the unit, so that it has low noise and low vibration.

Heat exchanger
The main body of the heat exchanger adopts high quality seamless copper tube and high purity aluminum foil, which is made into a compact whole by the advanced mechanical hydraulic tube expansion two techniques, and then tested by 2.8mpa air pressure seal. The performance conforms to American ARL standard, which guarantees the superior performance and reliable quality of the product.

Dry condensate tray
The carefully designed condensate pan and extra thick lining insulation material ensure that the unit is free from condensation and dripping under harsh environmental conditions. Slightly inclined installation of the condensate tray is conducive to the discharge of condensate. At the same time, the condensate pipe is calculated according to the non-full flow state, and the discharge capacity is more than 5 times the discharge amount of the unit during normal operation. The timely discharge of condensed water reduces the "corner touch" time of the condensate pan, which is not only beneficial to reduce the corrosion of the condensate pan but also avoid the growth of bacteria in the condensate pan, ensuring indoor air quality.

Air filter
The specially designed special plate filter can be easily extracted from the left, right, up and down of the unit, so it is especially suitable for maintenance and compaction in tight space. The filter section can be made of cotton embossed mesh or non-woven fabric.

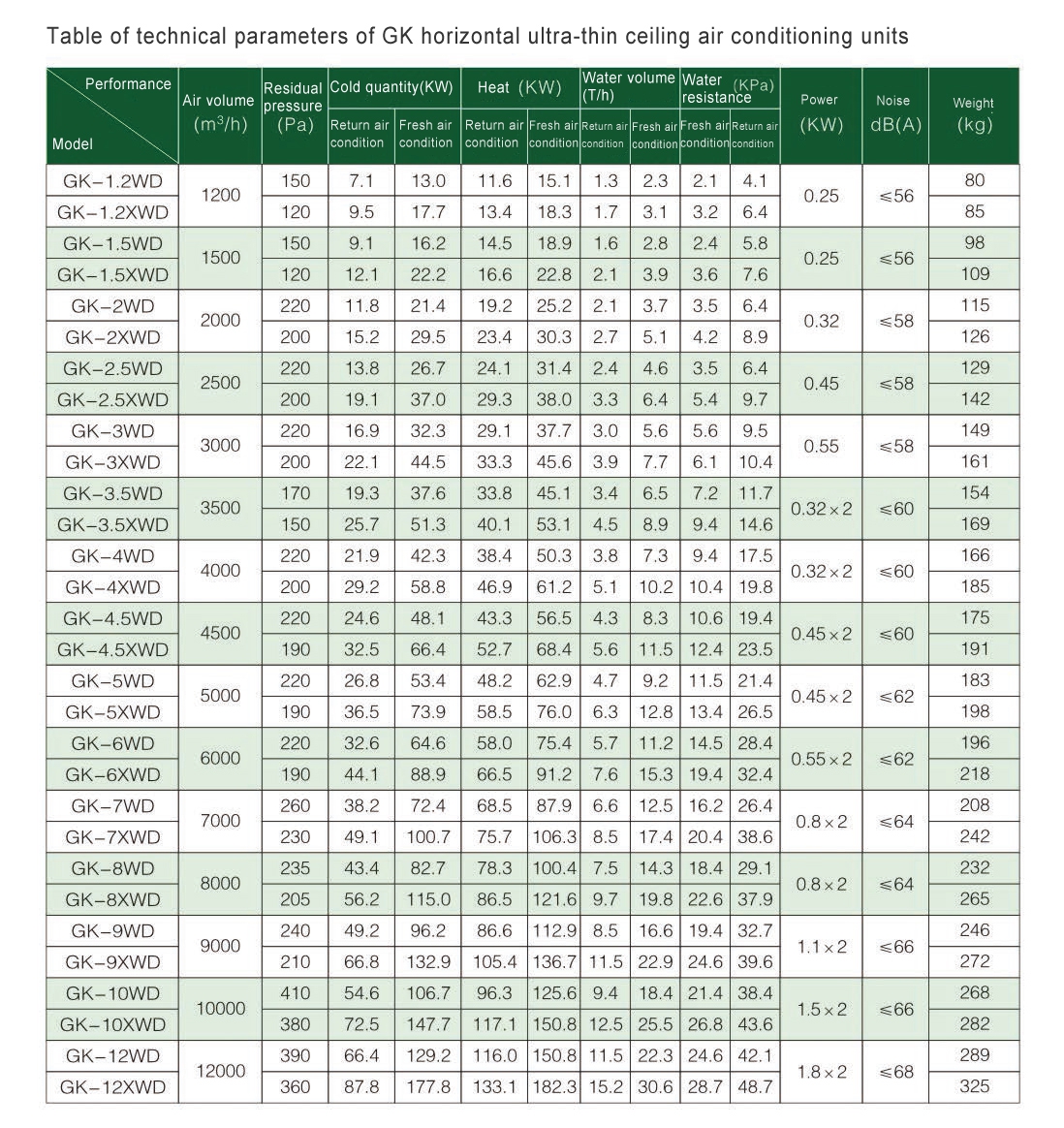

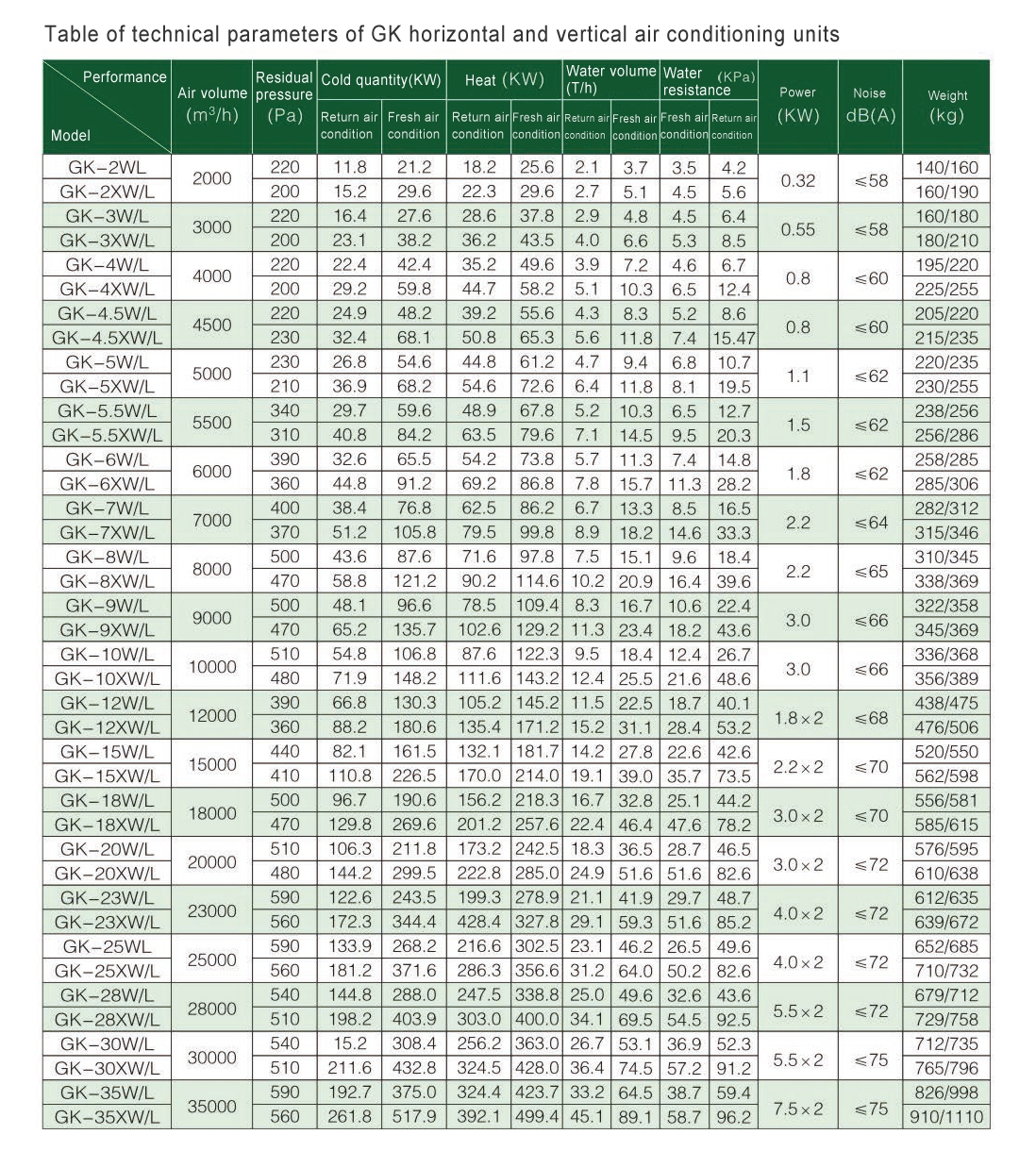

Note:
1. Return air condition: the inlet air-dry bulb temperature for cooling is 27℃, the bulb temperature is 19.5℃, the inlet water temperature is 7℃, and the temperature difference between inlet and outlet is 5 ℃.
2. Fresh air condition: air drying bulb temperature of cooling inlet is 34℃, bulb temperature is 28℃, inlet temperature is 7℃, and the temperature difference between inlet and outlet is 5 ℃.
3. Unit parameters are subject to change due to product improvement without prior notice.
