Description
Performance parameter

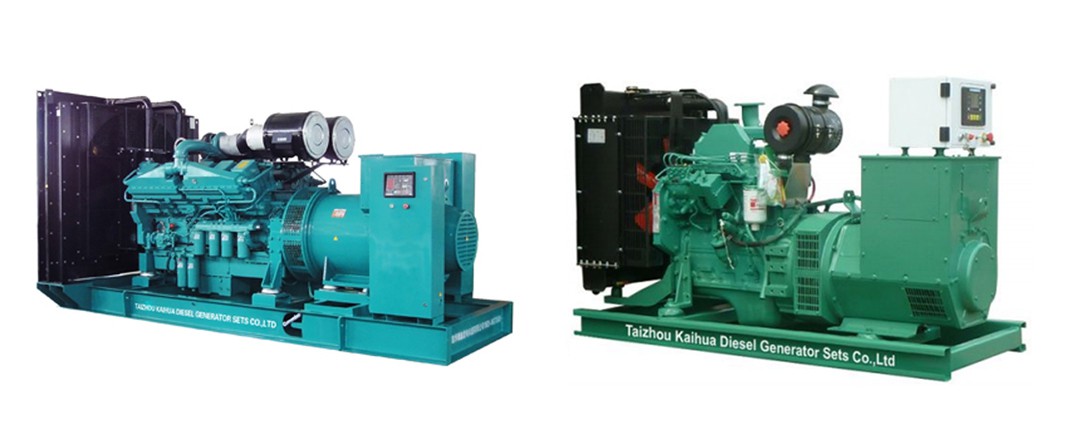

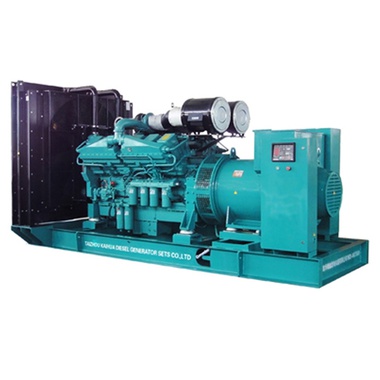

Diesel Generator Sets powered by Cummins

Product Description

Powered by Cummins ,it enjoys the features of high reliability ,easy maintenance,long continuous running hours and ideal for port,railway,industry and mining.The global service net can provide our customers with reliable and guaranteed service,environmental consciousness and long service life which is put forward by KAIHUA.

Section A Genset Specification

1. Specification of genset
Gensets model				KH-200GF
Prime power				250KVA
Rated Voltage				400V
Rated frequency(HZ)				50
Rated Speed				1500rpm
Power Factor				0.8(lagging)
Dimensions(mm) (L×W×H)				3350x1400x2000
Net Weight(kg)				2000
2. Specification of diesel engine
Engine brand				Powered by cummins
Engine model				6LTAA8.9-G2
Number of Cylinders				6
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged
Fuel System				PT type fuel pump
Bore×Stroke (mm×mm)				114x 145
Displacement (Liter)				8.9
Compression Ratio				16.6:1
Speed Governor				Electronic
Cooling System				Forced Water Cooling Cycle
Total lubrication system capacity (L)				27.6
Fuel Consumption at 100% Load (L/h)				32
Starting Method				DC24V electrical starting
3. Specification of alternator
Alternator brand				KAIHUA
Alternator model				KH-274K
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
4. The components of the generator set
1) Engine powered by Cummins 2)KAIHUA alternator 3)Automatic Transfer Switch control panel
5.General Features:
Engine powered by Cummins
Radiator 40°C max, fans are driven by Belt, with safety guard
12V charger alternator
KAIHUA Alternator
Absorber
Dry type air filter, fuel filter, oil filter
Main line circuit breaker
Standard control panel
Ripple flex exhaust pipe, exhaust siphone, flange, muffler
12V*2 batteries, rack and cable
User manual
6. Specification of control Panel(only for choose)
The control panel is ATS control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of controller:
GU620A is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.
The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s.

MODEL	Rated Output		Engine Model	Number of cylinders	Bore/Stroke	gas displacement	fuel consumption	boundary dimension	weight


	KVA	KW			(mm)	(L)	(g/kw.h)	(L×W×H) (mm)	(kg)
DCEC CUMMINS SERIES
KH-15GF	18.75	15	4B3.9-G2	4L	102/120	3.9	209	1660×750×1200	800
KH-20GF	25	20	4B3.9-G2	4L	102/120	3.9	209	1660×750×1200	800
KH-24GF	30	24	4B3.9-G2	4L	102/120	3.9	209	1660×750×1200	800
KH-32GF	40	32	4BT3.9-G2	4L	102/120	3.9	210	1660×750×1200	810
KH-48GF	60	48	4BTA3.9-G2	4L	102/120	3.9	210	1860×750×1200	850
KH-64GF	80	64	6BT5.9-G2	6L	102/120	5.9	206	2160×800×1300	1040
KH-75GF	93.75	75	6BT5.9-G2	6L	102/120	5.9	206	2160×800×1300	1056
KH-92GF	115	92	6BTA5.9-G2	6L	102/120	5.9	206	2160×800×1300	1096
KH-104GF	130	104	6BTAA5.9-G2	6L	102/120	5.9	209	2300×850×1300	1400
KH-150GF	187.5	150	6CTA8.3-G2	6L	114/135	8.3	209	2400×860×1380	1440
KH-160GF	200	160	6CTAA8.3-G2	6L	114/135	8.3	209	2500×960×1450	1700
KH-200GF	250	200	6LTAA8.9-G2	6L	114/144	8.9	209	2640×970×1450	2000
KH-350GF	437.5	350	QSZ13-G2	6L	130/163	13	193	3150×1360×1870	2600
KH-400GF	500	400	QSZ13-G3	6L	130/163	13	193	3150×1360×1870	2670
CCEC CUMMINS SERIES
KH-200GF	250	200	NT855-GA	6L	140/152	14	206	2980×1000×1700	2320
			MTA11-G2A	6L	125/147	10.8	200	2980×1000×1700	2320
KH-250GF	312.5	250	NTA855-G1B	6L	140/152	14	207	2980×1000×1700	2450
			MTAA11-G3	6L	125/147	10.8	188	3150×1050×1700	2450
KH-275GF	343.7	275	NTA855-G2A	6L	140/152	14	206	3100×1000×1700	2600
KH-300GF	375	300	NTAA855-G7	6L	140/152	14	204	3400×1280×1800	3050
KH-320GF	400	320	NTAA855-G7A	6L	140/152	14	204	3400×1280×1800	3050
KH-360GF	450	360	KTA19-G3	6L	159/159	18.9	203.8	3300×1350×2000	3600
KH-400GF	500	400	KTA19-G3A	6L	159/159	18.9	203.8	3420×1250×1930	3720
KH-420GF	525	420	KTAA19-G5	6L	159/159	18.9	206	3550×1550×2100	4000
KH-500GF	625	500	KTAA19-G6A	6L	159/159	18.9	203.8	3550×1550×2100	4400
KH-600GF	725	600	KTA38-G2	12V	159/159	37.8	206	4260×1650×2350	6350
KH-640GF	800	640	KTA38-G2B	12V	159/159	37.8	206	4260×1650×2350	6350
KH-720GF	900	720	KTA38-G2A	12V	159/159	37.8	210	4350×1650×2350	6650
KH-800GF	1000	800	KTA38-G5	12V	159/159	37.8	201	4500×1850×2350	6900
KH-900GF	1125	900	KTA38-G9	12V	159/159	37.8	201	4500×2100×2500	7500
KH-1000GF	1250	1000	KTA50-G3	16V	159/159	50.3	202	5100×2280×2500	9600
KH-1120GF	1400	1120	KTA50-G8	16V	159/159	50.3	204	5100×2280×2500	13000
KH-1200GF	1500	1200	KTA50-GS8	16V	159/159	50.3	204	5100×2280×2500	13000
IMPORTED CUMMINS SERIES
KH-250GF	312.5	250	QSL9-G5	6L	114/135	8.8	199	3150×1100×1920	2420
KH-380GF	475	380	QSX15-G6	6L	137/169	15	197	3430×1200×2065	4100
KH-400GF	500	400	QSX15-G8	6L	137/169	15	198	3430×1200×2065	4250
KH-500GF	625	500	VTA28-G5	12L	140/152	28	211	4067×1880×2286	5450
KH-600GF	750	600	VTA28-G6	12L	140/152	28	213	4047×1880×2286	5900
KH-640GF	800	640	QSK23-G3	6L	170/170	23.15	195	4593×1562×2086	6200
KH-720GF	900	720	QST30-G3	12V	140/165	30.48	201	4757×1702×2332	6500
KH-800GF	1000	800	QST30-G4	12V	140/165	30.48	202	4757×1800×2332	6700
KH-1500GF	1875	1500	QSK60-G3	16V	159/190	60	187	6175×2600×2840	15152
KH-1600GF	2000	1600	QSK60-G4	16V	159/190	60	194	6175×2600×2840	15366
KH-1800GF	2250	1800	QSK60-G13	16V	159/190	60	199	6175×2600×2840	17217
KH-2000GF	2500	2000	QSK78-G9	16V	170/190	77.6	201	7158×2800×2900	24880
KH-2400GF	3000	2400	QSK78-G6	16V	170/190	77.6	203	7158×2800×2900	25280

1. The above technical parameters are 50Hz, the rated voltage is 400/230v, the power factor is 0.8, and the connection mode is 3 phase and 4 lines. 60Hz generator sets can be customized according to customers' special needs.
2. The generator can choose famous brands such as kaihua, capgemini, Stanford, lili, marathon and so on according to customers' needs.
3. This data sheet is for reference only and subject to change without prior notice.
