Description
Performance parameter

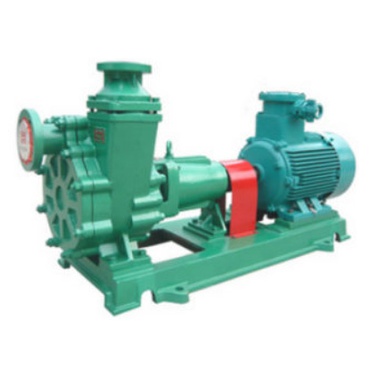

FZB self-priming centrifugal pump

Product Useage

This product is widely used in chemical pesticides, acid and alkali production, papermaking, pickling process, electronics and other industries.

Service temperature: -20~80℃

The Core Technology

New type fluorine plastic alloy self-priming pump Patent no.：ZL200820038727.9

Design Features

Patent product

FB series fluorine plastic alloy self-priming pump, the main structure of the pump is on the basis of IHF centrifugal pump, equipped with double volute self-priming pump body, to realize its self-priming function.The overall structure is simple and universal.

Corrosion pressure

The parts are made of fluoroplastics and fluoroplastics alloy with excellent corrosion resistance.The matrix is made of metal with strong pressure resistance.

Easy to operate

Specially designed for low groove conditions, the pump is installed above the tank, easy to install, operate, overhaul and maintain.The height of imbibition can be determined within 1 to 3 meters according to the density of the medium.

Using range

1. Pressure endurance limit: the pressure endurance limit is 1.0Mpa. It should be noted that the output pressure of the pump cannot exceed the forward pressure limit.

Temperature variations :0~40℃, ambient humidity variations :35~85%RH.

3. It is forbidden to transport media with particles and products, and it is forbidden to transport media that will produce a large number of bubbles.

4. Influence of liquid viscosity on pump performance: when liquid viscosity changes, pump performance also changes.

Packing and inspection

Please check the following items after opening the packing cases and bags.

(1) whether the products and accessories (including other information required by the user) are consistent with and complete with the packing list;

(2) check the data on the nameplate of the pump and motor to confirm whether they meet the order requirements;

(3) whether the product is damaged in the process of transportation and whether the connecting bolts are loose.

Speed: n = 2900r / min Design pressure: 1.6MPa "*" is the standard parameter

Model	Flow m³/h	Head M	Efficiency %	NPSH m	Inlet×Outlet mm	Self-priming height m	Self-priming time s	Motor power Km	Weight Kg
25FZB-20L	1.5	19	10	3	25×25	1	180	2.2	65
	*3.6	18	20
	6	16	30
40FZB-20	5	22	35	3	40×50	1	180	3	47
	*8	20	42
	12	17	40
40FZB-30L	5	32	24	3.5	40×50	3	150	4	160
	*8	30	48
	12	28	45
50FZB-20	8	22	35	3	50×50	1	180	3	47
	*12	20	42
	15	17	40
50FZB-30L	8	32	24	3.5	50×50	3	150	4	160
	*12	30	48
	15	28	45
50FZB-45L	8	47	24	3.5	50×32	3	150	7.5	210
	*12	45	35
	15	43	32
50FZB-70L	8	72	20	4	50×32	3	150	15	320
	*12	70	26
	25	65	39
60FZB-30L	15	32	40	4	65×50	3	200	7.5	210
	*25	30	55
	35	27	48
65FZB-45L	15	47	30	4	65×40	3	180	11	300
	*25	45	42
	35	38	44
65FZB-70L	15	72	30	4	65×40	3	180	30	530
	*25	70	41
	35	65	42
80FZB-30L	35	32	54	4.5	80×65	3	150	11	284
	*50	30	58
	60	25	48
80FZB-45L	35	47	45	4.5	80×65	3	180	15	330
	*50	45	53
	60	42	46
80FZB-70L	35	72	45	5	80×50	3	200	30	550
	*50	70	50
	60	65	43
100FZB-30L	65	32	54	6	100×80	3	150	18.5	390
	*100	30	60
	110	26	54
100FZB-45L	65	46	48	6	100×80	3	150	30	500
	*100	45	55
	110	40	48

Note: 1. Full plastic specifications: 25FZB-20L, 40FZB-20, 50FZB-20, the rest of the specifications are metal + lining structure.
2. Design pressure: full plastic: 0.6MPa; metal + lining :1.6MPa.
