〖WOLONG〗CQL Series Stainless Steel Magnetic Pump

AA level - industry pioneerbrand story
  • Anhui Wolong Pump & Valve Co., Ltd.

tp400-678-6995 / 021-59946780

Selection list
序号 采购操作
1
Related products

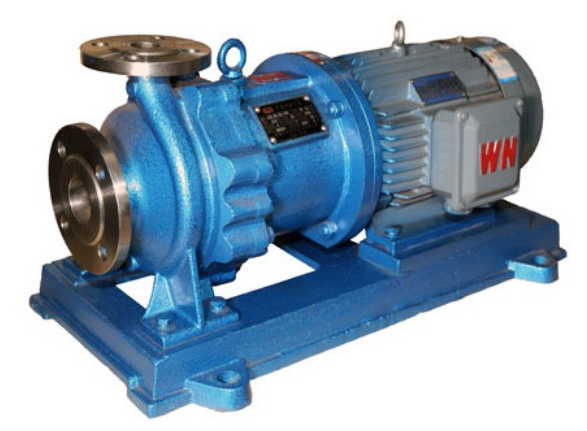

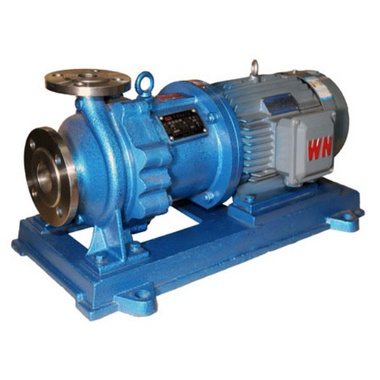

CQL Series Stainless Steel Magnetic Pump



Product name Stainless steel magnetic pump series
Structure Single-stage Pump
power Electric
Standard ISO/ASME/ANSI
Standard or Nonsta OEM/Standard
Usage Sour acid production, Metal smelting, acid washing,Oil "
Application Agriculture, Industry, Medical, Electroplating, Chemicals



Product Introduction

1. application and characteristics
This product should be widely used in: petrochemical industry, acid and alkali production, non-ferrous metal smelting, automobile manufacturing pickling T art, rare earth separation, agriculture, dye, medicine, paper, plating, wireless and other industry characteristics;The magnetic coupler is used to transmit the reverse force without any leakage.When the motor drives the magnetic coupler's external magnetic steel rotation, magnetic force line through the gap and isolation sleeve, acting on the internal magnetic cutter, so that the pump rotor and the motor synchronous rotation.Inorganic maple contact transfer torsion know, in the pump shaft power input end, because the liquid bai closed in the forbidden isolation sleeve, no dynamic seal structure, so can be completely especially leakage and compact structure, safe and energy saving.

2.Packaging and inspection
Please check the following items after opening the packing cases and bags:
(1) whether the products and accessories (including other information required by the user) are consistent with and complete with the packing list;
(2) check the data on the nameplate of the pump and motor to confirm whether they meet the order requirements;
(3) whether the product is damaged in the process of transportation and whether the connecting bolts are loose.
