370D系列产品特点
★阀体阀座采用双沟槽连接方式,确保阀体、阀座、蝶板之间方便准确的连接,降低了安装难度,彻底解决了由于安装调试不当引起的阀座被搓起变形的问题。
★双沟槽定位强度高,蝶板与阀座之间的过盈量更加精确稳定,开启扭矩轻而且一致性好,从而进一步提高了阀门的密封性能。
★双沟槽定位结构,基本消除了阀门启闭过程中阀座发生蠕动的现象,提高了阀门的使用寿命及可靠性。
★采用大圆弧宽边设计,适用多种法兰连接。

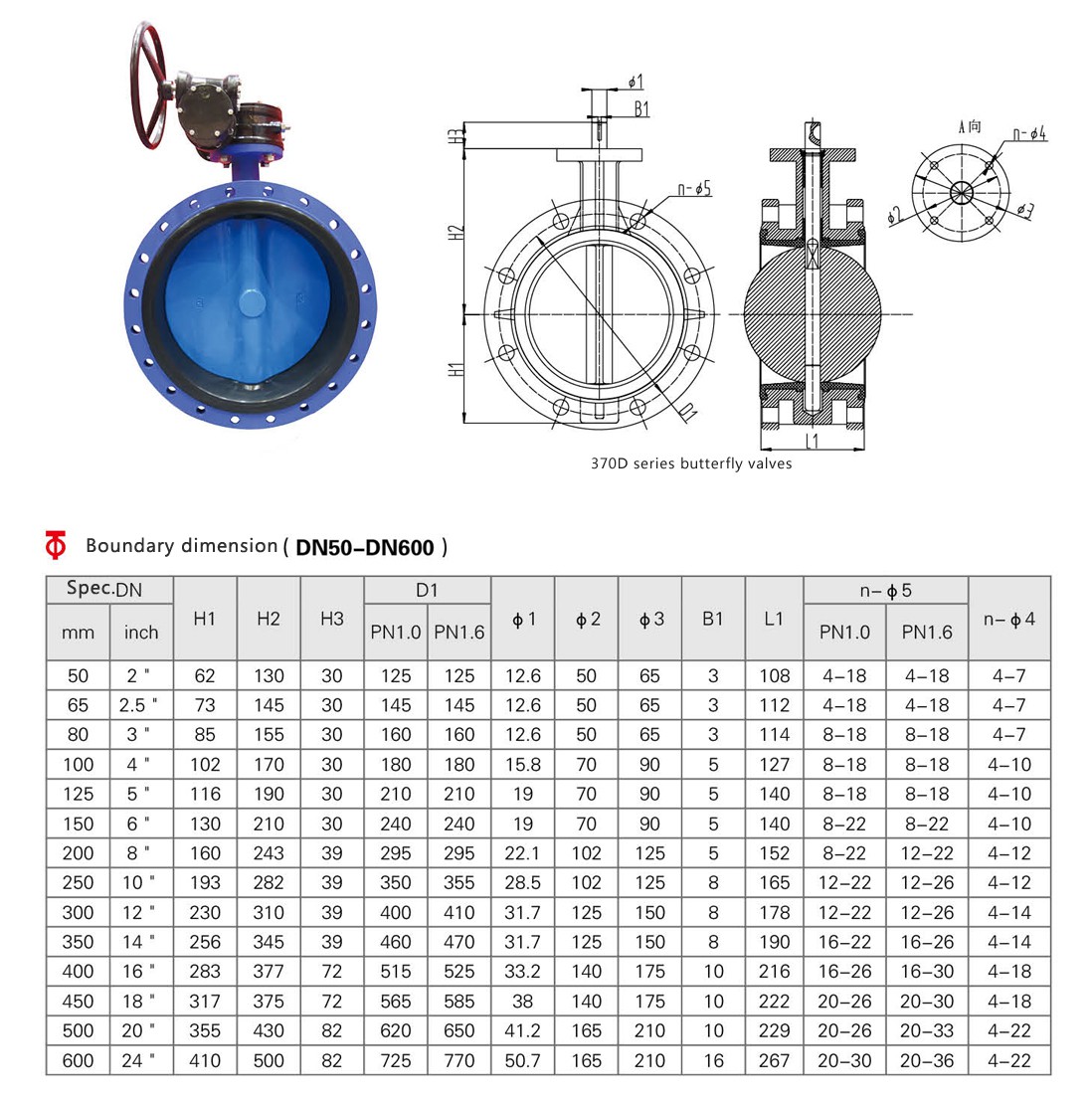

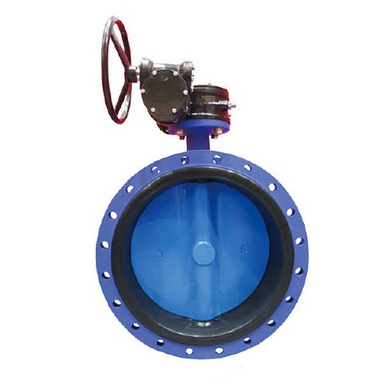

370D series butterfly valves

370D series product features
★ The valve body and valve seat adopt double groove connection, which ensures the convenient and accurate connection between the valve body, valve seat and butterfly plate, reduces the installation difficulty, and completely solves the problem of the valve seat being rubbed and deformed due to improper installation and debugging .
★ The double groove positioning strength is high, the interference between the butterfly plate and the valve seat is more accurate and stable, the opening torque is light and the consistency is good, thereby further improving the sealing performance of the valve.
★ The double groove positioning structure basically eliminates the phenomenon of valve seat creep during valve opening and closing, and improves the service life and reliability of the valve.
★ Adopt large arc wide side design, suitable for a variety of flange connections.
