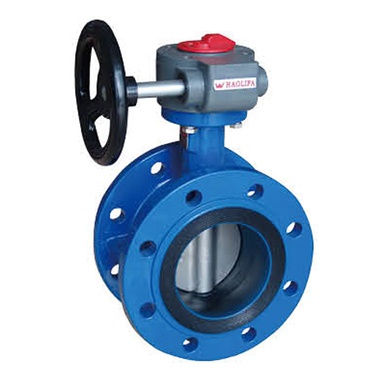

320D middle line double flange butterfly valve (DN50-DN3600)

Features
★ the middle line double flange butterfly valve is designed according to the requirements of large-scale pipe network, which belongs to the mesh butterfly valve.
★ high strength of valve body. The safety factor is large, which can resist large pipeline stress.
★ the valve seat adopts the structural form of overall vulcanization on the valve body, and extends to the outer edge of the valve body, eliminating the use of flange gasket. The vulcanized valve seat is solid and reliable, eliminating the leakage path and corrosion clearance.
★ the soft sealing center line double flange butterfly valve can realize 100% bidirectional switch function. It can be used in various fields of industry, especially in shipbuilding, dyke, petrochemical, heavy industry, seawater, tap water, sewage and other large-scale pipe networks.



Main material
Valve body: nodular cast iron, gray cast iron, cast steel
Valve plate: nodular cast iron coated with nylon / electroplating, stainless steel, aluminum bronze
Stem: stainless steel, carbon steel
Valve seat: EPDM, NBR, FPM, others



Main parameter
Nominal diameter (mm): dn50-dn3600
Nominal pressure (MPA): 1.0 / 1.6 / 2.5
Shell test pressure (MPA): nominal pressure × 1.5
Sealing test pressure (MPA): nominal pressure × 1.1
Driving mode: handle, worm gear, electric and pneumatic
Applicable temperature: - 30-150 ℃
Applicable media: water, salt, acid, alkali, natural gas, air, oil, etc

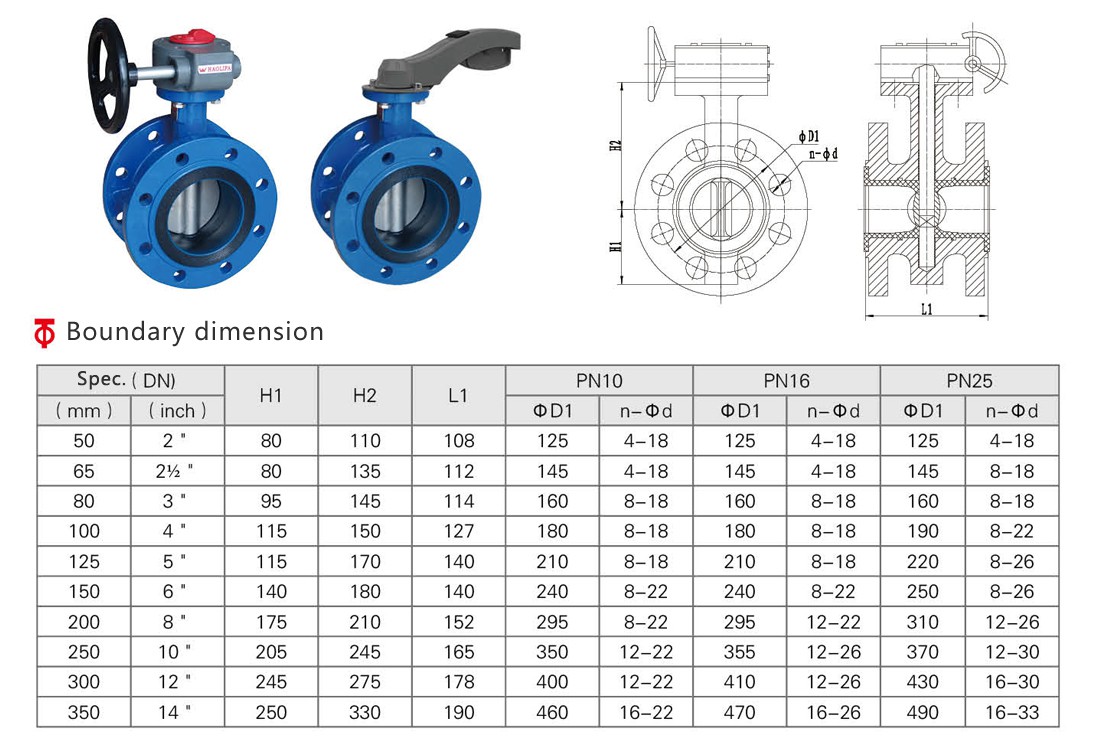

DN50-DN350 320 center line-type double flange butterfly valve

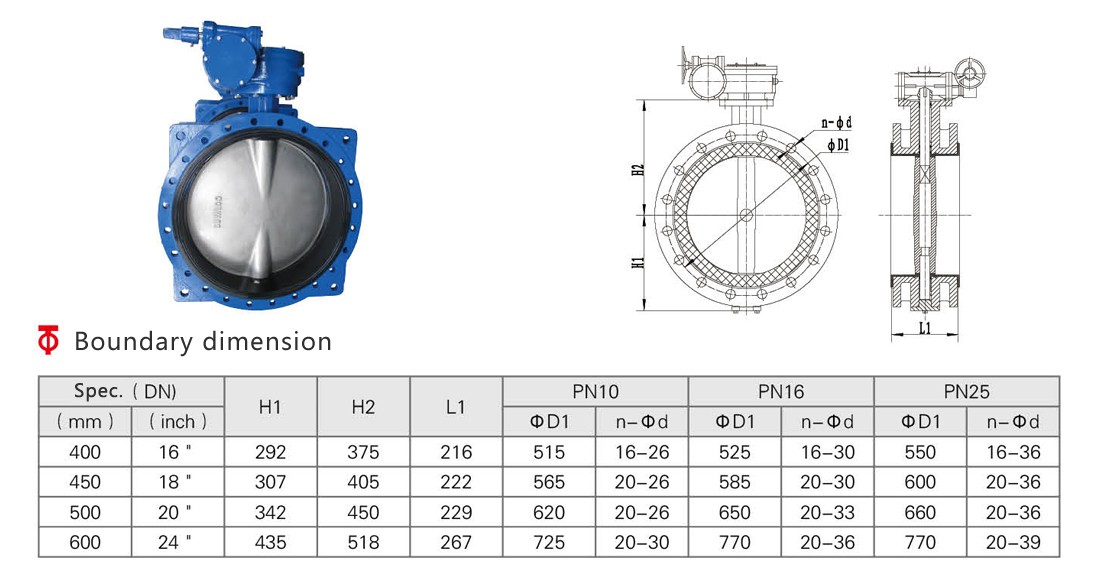

DN400-DN600 320 center line-type double flange butterfly valve
