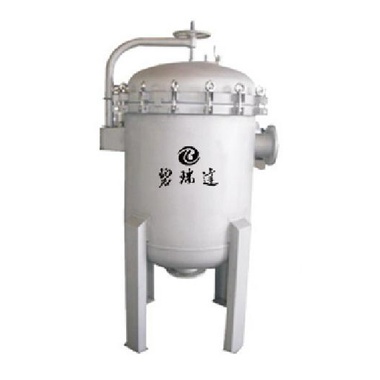

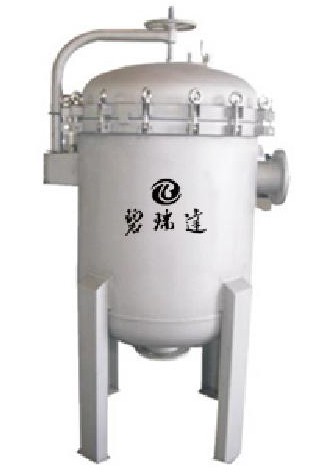

BRD袋式过滤器   BRD bag filter

■产品概述
袋式过滤器采用了欧美公司产品标准组织生产,选配了国外进口材料、加工工艺和标准的滤袋,将出色的过滤性能、高度可靠性与操作便捷性完美统一。广泛适用于石油、化工、食品饮料、微电子、水处理及膜工业、制药及金属加工等领域水质的深度处理。

■ Product Overview
The bag filter is produced by the European and American companies' product standards organization, and is equipped with foreign imported materials, processing technology and standard filter bags, which perfectly unifies excellent filtering performance, high reliability and convenient operation. It is widely used in the advanced treatment of water quality in the fields of petroleum, chemical industry, food and beverage, microelectronics, water treatment and membrane industry, pharmaceutical and metal processing.

■工作原理
滤袋由支撑滤篮承托,要过滤的液体从滤袋顶端流入,这样液体可均匀分布在整个滤袋的过滤表面,令整个层面中的流体分布恒定一致没有紊流的负面影响,过滤效果好。液体从滤袋内表面流向外表面,滤除的颗粒杂质被截留在滤袋内,确保更换袋时不致污染下游液体。以高强度不锈钢丝网支撑的支撑滤篮,令过滤系统中的过滤表面积大大提高,提供了一个大而畅通的过滤表面。

■Working principle
The filter bag is supported by a support basket, and the liquid to be filtered flows in from the top of the filter bag, so that the liquid can be evenly distributed on the filter surface of the whole filter bag, so that the fluid distribution in the whole layer is constant and consistent without the negative impact of turbulence, and the filtering effect is good. The liquid flows from the inner surface of the filter bag to the outer surface, and the filtered particle impurities are trapped in the filter bag to ensure that the downstream liquid will not be polluted when the bag is replaced. The support basket supported by high-strength stainless steel wire mesh greatly improves the filtration surface area in the filtration system and provides a large and smooth filtration surface.

技术参数
公称压力：0-1.0 MPa
流量：1-8000 m3/h
适用温度：常温(可设计高温)
滤芯尺寸：2#袋(其它规格可定制)
精度:0.5-2000mm
本体材质:不锈钢304/316L
过滤面积:0.1-0.5m²
滤芯材质:PP、PE

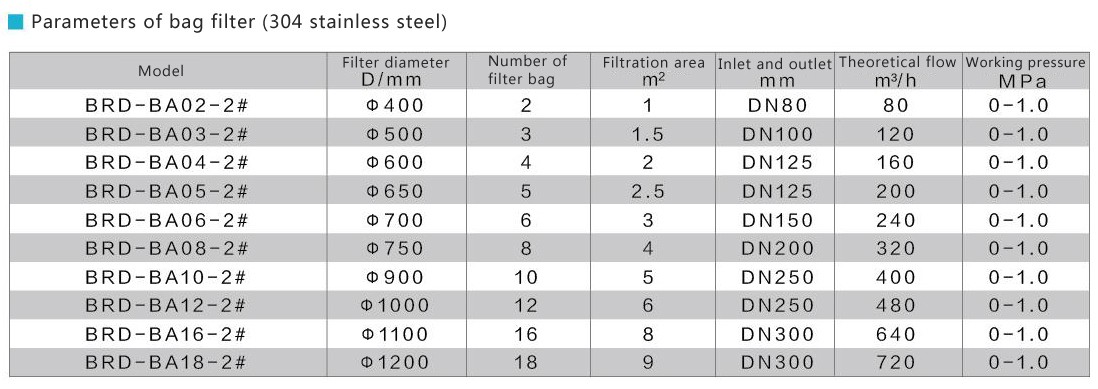

Technical parameter
Nominal pressure：0-1.0 MPa
Flow：1-8000 m3 / h
Applicable temperature：normal temperature (high temperature can be designed)
Filter Size:2 × bags (other specifications can be customized)
Accuracy: 0.5-2000mm
Body material: stainless steel 304 / 316L
Filtering area: 0.1-0.5m²
Filter element material: PP, PE
