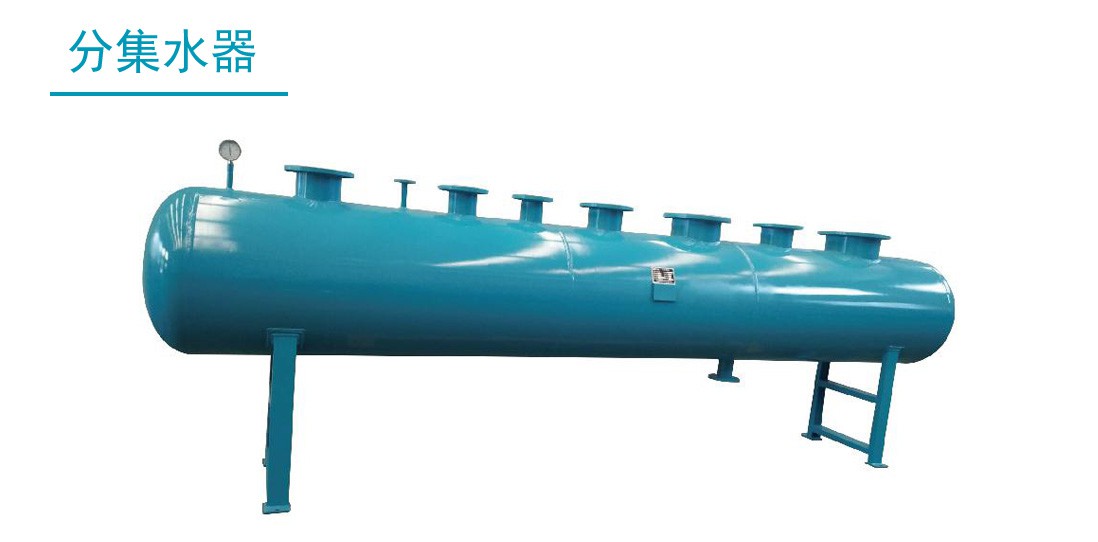

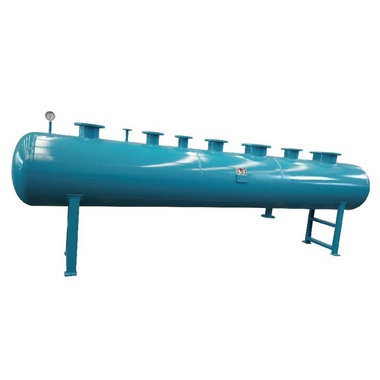

产品概述：

分集水器（又名分集水缸、集分水器）是由集水器和分水器组合而成的水流量分配和汇集装置。分水器是将一路进水 分散为几路输出的设备，而集水器是将多路进水汇集起来在一路输出的设备。 公司 BRD-FJS 系列分集水器主要由主管、分路支管、排污口、排气口、压力表、温度计等组成，材质由碳钢板卷 制，或无缝钢管制作而成，能承受一定压力，外表面做防腐或保温处理。分集水器筒体上根据需要连接多个进出水 管，可将各路水汇集或将一路水分流，筒体上装有压力表或温度计，可方便观察筒体内水流状态。筒体的下端部装有 排污口，用于清洗筒体时的污水流出。



工作原理：

分集水器一方面将主干管的水按需要进行流量分配，保证各区域分支环路的流量满足负荷需要，同时还要将各分支回 路的水流汇集，并且输入回水主干管中，实现循环运行。 分集水器广泛应用于锅炉、中央空调、工业循环冷却水系统、热水系统。它区别于热交换机组、真空脱气机等其他空 调系统里面的产品，分集水器主要用于水路系统。



产品特点：

1）严格按照国家标准图集《05K232分集水器分汽缸》设计制作，筒体壁厚达到要求。

2）根据实际使用情况，优化压力表及温度计接口，便于安装使用，测温准确。

3）根据各接管法兰，选用蝶阀专用法兰或者平焊法兰，确保法兰与对应阀门的匹配，法兰与阀门接触面积大，强度 高，少泄露。

4）可根据用户需要设计集分水器尺寸 , 确保使用效果。



Product overview:
Diversity water collector (also known as diversity water cylinder and water collector) is a water flow distribution and collection device composed of water collector and water separator. The water separator is a device that disperses one way of water inflow into several ways of output, while the water collector is a device that collects multiple ways of water inflow into one way of output. Brd-fjs series water collector of the company is mainly composed of main pipe, branch pipe, drain outlet, exhaust outlet, pressure gauge, thermometer, etc. the material is made of carbon steel plate or seamless steel pipe, which can bear certain pressure, and the outer surface is treated with anti-corrosion or heat preservation. Multiple water inlet and outlet pipes are connected on the cylinder of the diversity water collector according to the needs. Each water can be collected or one water can be divided. A pressure gauge or thermometer is installed on the cylinder to facilitate the observation of the water flow status in the cylinder. The lower end of the cylinder is equipped with a drain outlet, which is used for the outflow of sewage when cleaning the cylinder.

Working principle:
On the one hand, the water flow of the main pipe is distributed according to the demand of the water flow of the diversity water collector to ensure that the flow of the branch loop in each area meets the demand of the load, and at the same time, the water flow of each branch loop is collected and input into the return main pipe to realize the circulation operation. Diversity water collector is widely used in boiler, central air conditioning, industrial circulating cooling water system and hot water system. It is different from the products in other air-conditioning systems such as heat exchange unit, vacuum degasser, etc. the diversity water collector is mainly used for water system.

Product features:
1) It is designed and manufactured in strict accordance with the national standard atlas 05k232 water collector cylinder, and the wall thickness of the cylinder meets the requirements.
2) According to the actual use, optimize the pressure gauge and thermometer interface, easy to install and use, and accurate temperature measurement.
3) According to the flange of each connecting pipe, the butterfly valve special flange or flat welding flange shall be selected to ensure the matching between the flange and the corresponding valve. The contact area between the flange and the valve is large, with high strength and less leakage.
4) The size of the water collector can be designed according to the needs of users to ensure the use effect.
