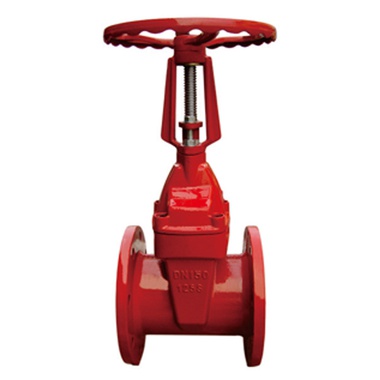

Rising Stem Flanged Resilient Gate Valve (TH010)

Product overview:

Soft seal gate valve is a new generation of traditional gate valve. It uses the compensation function of elastic valve plate to produce micro deformation to achieve good sealing effect. The valve has the advantages of integral rubber coating, corrosion resistance, not easy to break, good elastic memory and long service life. It can be widely used in tap water, sewage, construction, power, medicine, metallurgy, light textile, energy system and other fluid pipes. The line is used as a regulation and closure device.

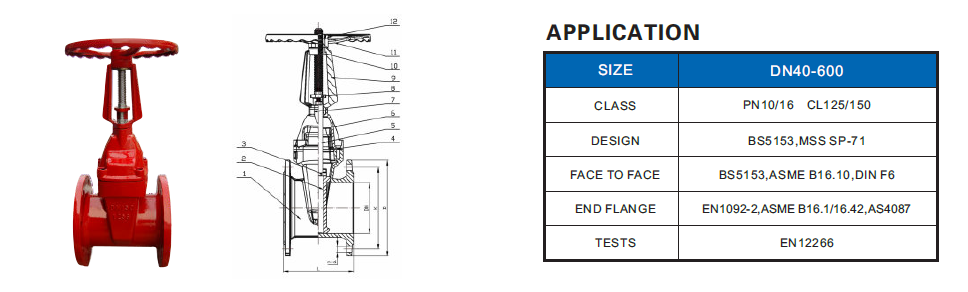

Technical parameters:

nominal diameter: DN40-DN600

nominal pressure: PN10PN16CL125CL150

applicable temperature: 0-80 ℃

applicable medium: water, oil, gas, etc.

design standards:CJT216-2013,GB/T32290,BS5163,DIN3352,EN1171,EN1074

structural length: GB/T12221/EN558-1/SABS664/SABS665

flange drilling: GB/T17241.6,EN1092-2, ASME B16.1/16.42,AS4087

test standards:GBT13927,EN12266

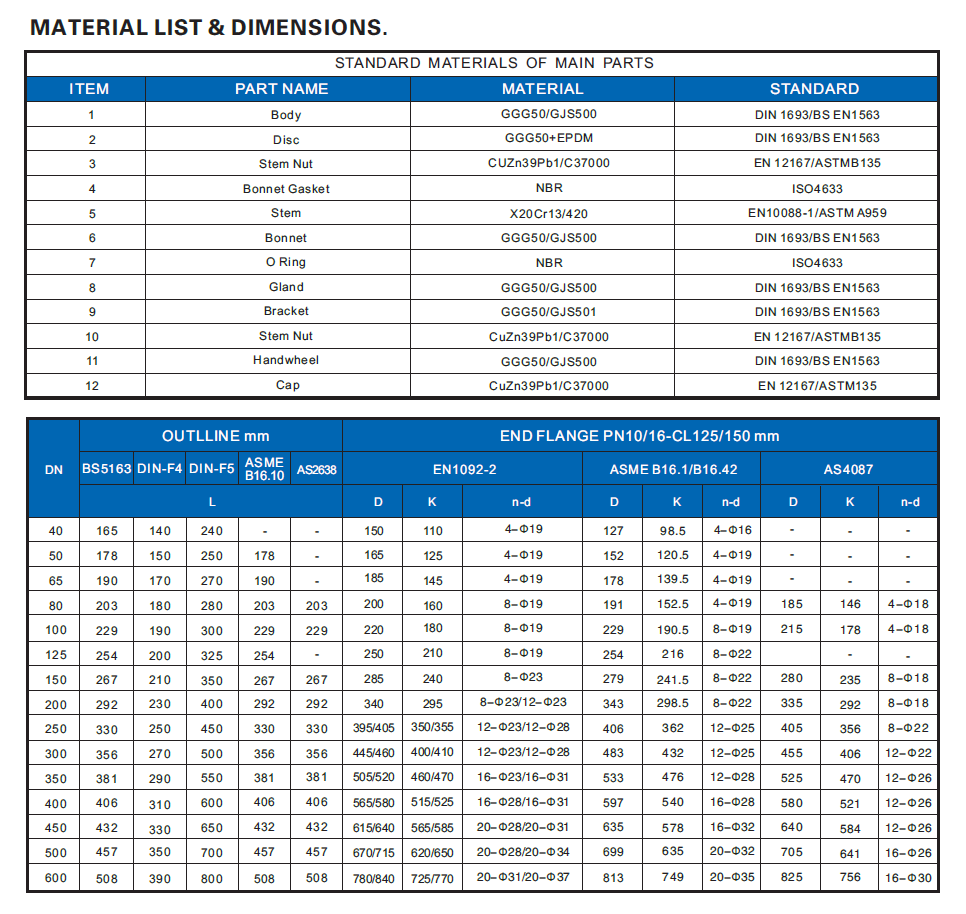

No. Part Material
1 valve body nodular cast iron
2 valve clack nodular cast iron + EPDM
3 the head gasket EPDM
4 valve rod stainless steel 2CR13
5 bonnet nodular cast iron
6 O-ring  chemigum
7 gland nodular cast iron
8 bracket nodular cast iron
9 valve-stem nut brass 59-110
10 hand wheel nodular cast iron
11 round nut steel
