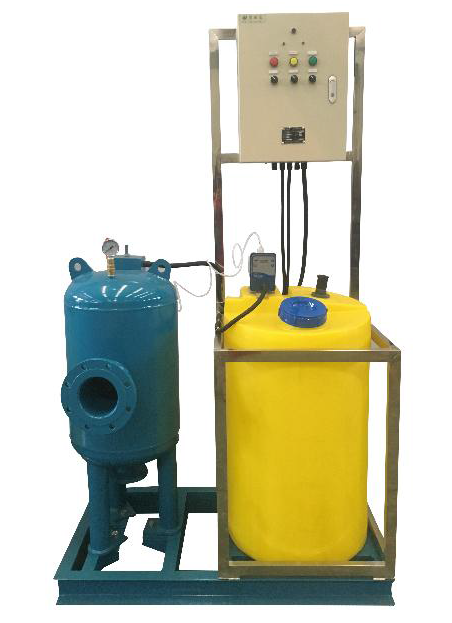

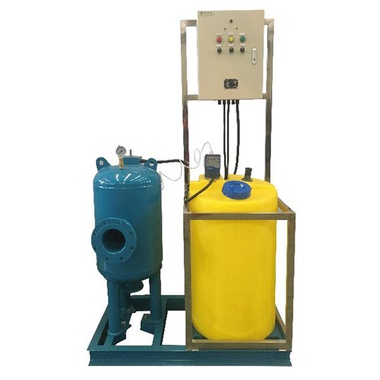

BRD物化全程综合水处理器

■产品概述
物化全程综合水处理器是用于循环水处理的实用新型产品,它通过对水系统的综合处理,彻底解决以往化学加药处理产生的悬浮物遗留问题和物理处理方法效果不明显问题,可有效防止水系统经常出现的结垢、腐蚀、生物粘泥、悬浮物堵塞问题,是现今非常高效的循环水处理设备。物化全程综合水处理器广泛应用于中央空调系统循环水处理系统、工业循环水处理系统、小区集中供热水处理系统、游泳池循环水处理系统、宾馆、洗浴热水处理系统、中水、景观水处理系统等水系统。

■工作原理
物化全程综合水处理器包含物理法全流量处理单元、化学法全流量处理单元、全流量过滤单元、水质保持单元及全自动控制单元组成。通过自动控制系统在线即时分析循环水水质情况,根据系统要求、补水水质和运行工况、环境状况等条件科学地定时定量地将化学药剂加入水中,起到防垢、防腐、杀菌、灭藻作用。系统的过滤系统通过在线的水质检测装置,控制水中的悬浮物含量,提高水的浓缩倍数,自动启动排污装置,保证循环水系统的正常运行。当水系统浓缩倍数正常稳定、水质变好满足物理法处理范围时,系统监测系统返回信号给加药系统,停止加药,通过物理场射频技术起到防垢除垢、防腐除锈、杀菌灭藻的作用。这样既节省了加药量、最大限度降低单独使用药剂的危害,又完全能达到系统要求的处理效果。

■产品特点
1)电极工作电压<36,使用安全可靠。
2)过滤元件采用不锈钢滤网,过滤精度高,流通量大。
3)电极材料采用特殊材料制作,具有除垢杀菌率高、损耗小、耐腐蚀、放电速度快等优点。
4)减少系统检修、清洗时间和费用。
5)管理简便,系统可以实行加药、排污的自动操作,无人管理,节省人力。
6)采用先进的微处理控制器控制,可实现系统运行、参数设置、报警、纪录查询、系统联动、数据输岀及自动排污等功能。预留接口,可实现计算机远程控制和信息管理。

■技术参数
工作电压：AC380V50Hz(电动型)，AC220V50Hz(标准型）
缓蚀率：≤0.092mm/年
阻垢、除垢率：≥95%
杀菌率：≥95%
灭藻率：≥95%
进水水质：总硬度(以CaCO3计)≤800mg/L;适用水温0℃-+70℃
工作压力：0.6、1.0、1.6MPa;相对湿度<95%。环境温度-5℃~+40℃
过滤精度：200-3500μm(电动型），1000-3500μm(标准型)
连接方式：法兰连接

■ Product Overview
The physicochemical whole process integrated water processor is a new practical product for circulating water treatment. Through the comprehensive treatment of water system, it can thoroughly solve the problems left by the chemical dosing treatment in the past and the problems of the physical treatment method with no obvious effect. It can effectively prevent the scaling, corrosion, biological slime and suspended matter blocking problems that often occur in the water system. It is now a very efficient circulating water Processing equipment. Physicochemical integrated water treatment system is widely used in central air conditioning system, industrial circulating water treatment system, district central heating water treatment system, swimming pool circulating water treatment system, hotel, bathing hot water treatment system, reclaimed water, landscape water treatment system and other water systems.

■ Working principle
The physical-chemical whole process integrated water treatment unit consists of physical full flow treatment unit, chemical full flow treatment unit, full flow filtration unit, water quality maintenance unit and full-automatic control unit. Through the on-line real-time analysis of the quality of circulating water by the automatic control system, according to the system requirements, water quality, operation conditions, environmental conditions and other conditions, the chemical agents are added to the water in a scientific and quantitative manner, which plays the role of scale prevention, corrosion prevention, sterilization and algae control. The filter system of the system controls the content of suspended matter in the water through the online water quality detection device, improves the concentration multiple of the water, and automatically starts the blowdown device to ensure the normal operation of the circulating water system. When the concentration multiple of the water system is normal and stable, and the water quality is good enough to meet the scope of physical treatment, the system monitoring system will return a signal to the dosing system, stop dosing, and play the role of scale prevention and scale removal, corrosion prevention and rust removal, sterilization and algae control through the physical field RF technology. In this way, not only the dosage is saved, the harm of using the agent alone is minimized, but also the treatment effect required by the system is fully achieved.

■ Product features
1) The working voltage of electrode is less than 36, which is safe and reliable.
2) The filter element adopts stainless steel filter screen, which has high filtering precision and large flow capacity.
3) The electrode material is made of special material, which has the advantages of high scale removal and sterilization rate, small loss, corrosion resistance and fast discharge speed.
4) Reduce the time and cost of system maintenance and cleaning.
5) The management is simple, the system can implement the automatic operation of dosing and sewage discharge, without human management, and save manpower.
6) The advanced microprocessor controller is used for control, which can realize the functions of system operation, parameter setting, alarm, record query, system linkage, data output and automatic blowdown. Reserved interface can realize computer remote control and information management.

■ Technical parameters
Working voltage: ac380v50hz (electric type), AC220V50HZ (standard type)
Corrosion inhibition rate: ≤ 0.092mm/year
Scale inhibition and descaling rate: ≥ 95%
Sterilization rate: ≥ 95%
Algaecide rate: ≥ 95%
Inlet water quality: total hardness (calculated by CaCO3) ≤ 800mg / L; applicable water temperature: 0 ℃ - + 70 ℃
Working pressure: 0.6, 1.0, 1.6Mpa; relative humidity < 95%. Ambient temperature - 5 ℃ ~ + 40 ℃
Filtering accuracy: 200-3500 μ m (electric type), 1000-3500 μ m (standard type)
Connection mode: flange connection
