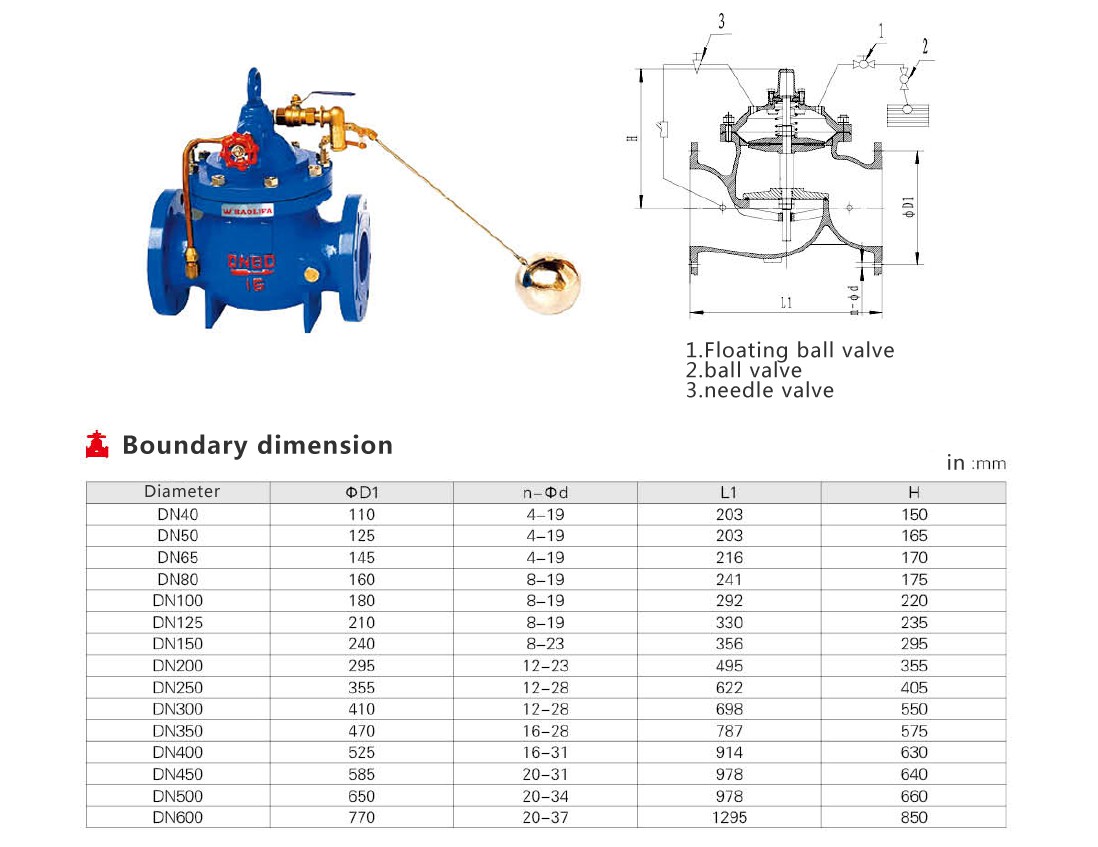

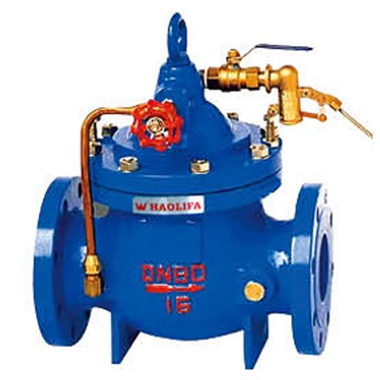

100X remote control float valve
Engineering pressure: 1.6MPa
Working medium: water, sewage, oil, etc.
Sealing pressure: 1.76MPa
Strength and pressure: 2.4MPa
Upper sealing pressure: 1.76MPa
Gas sealing pressure: 0.6MPa
Operating temperature: ≤80 ℃

Material
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: 304
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62

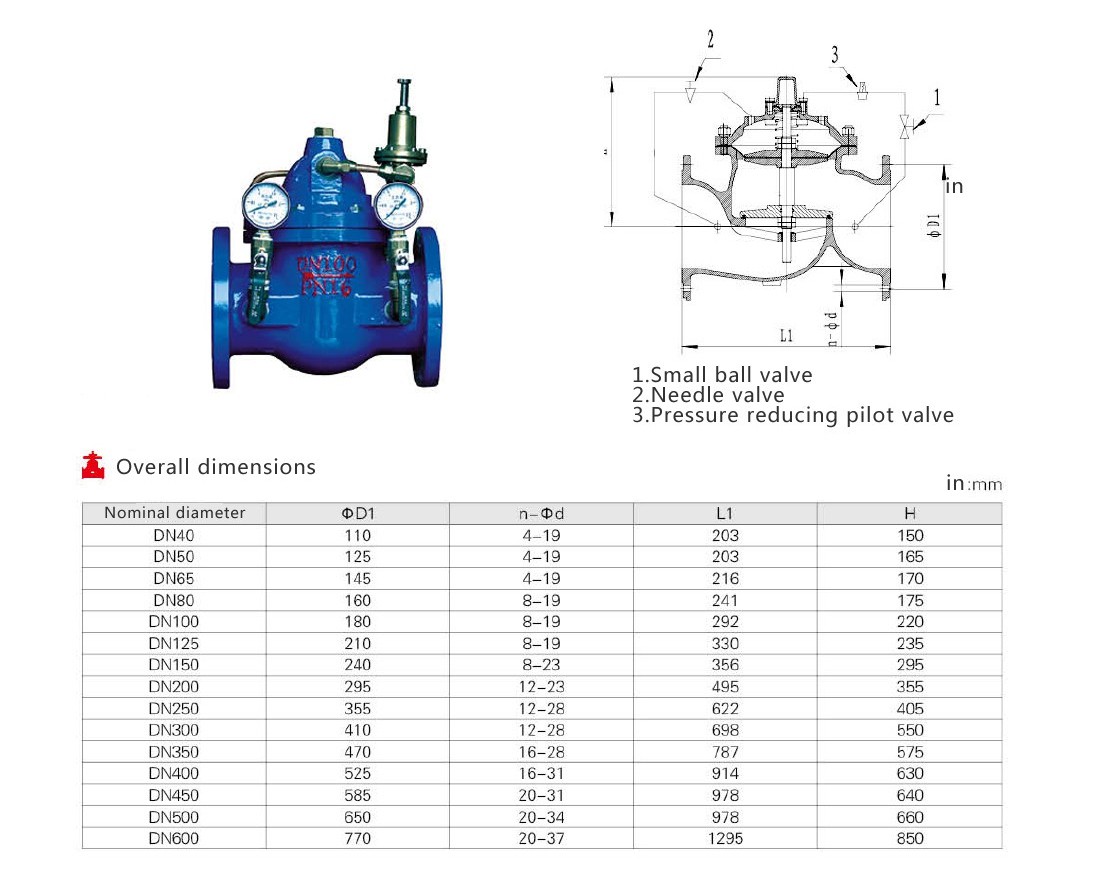

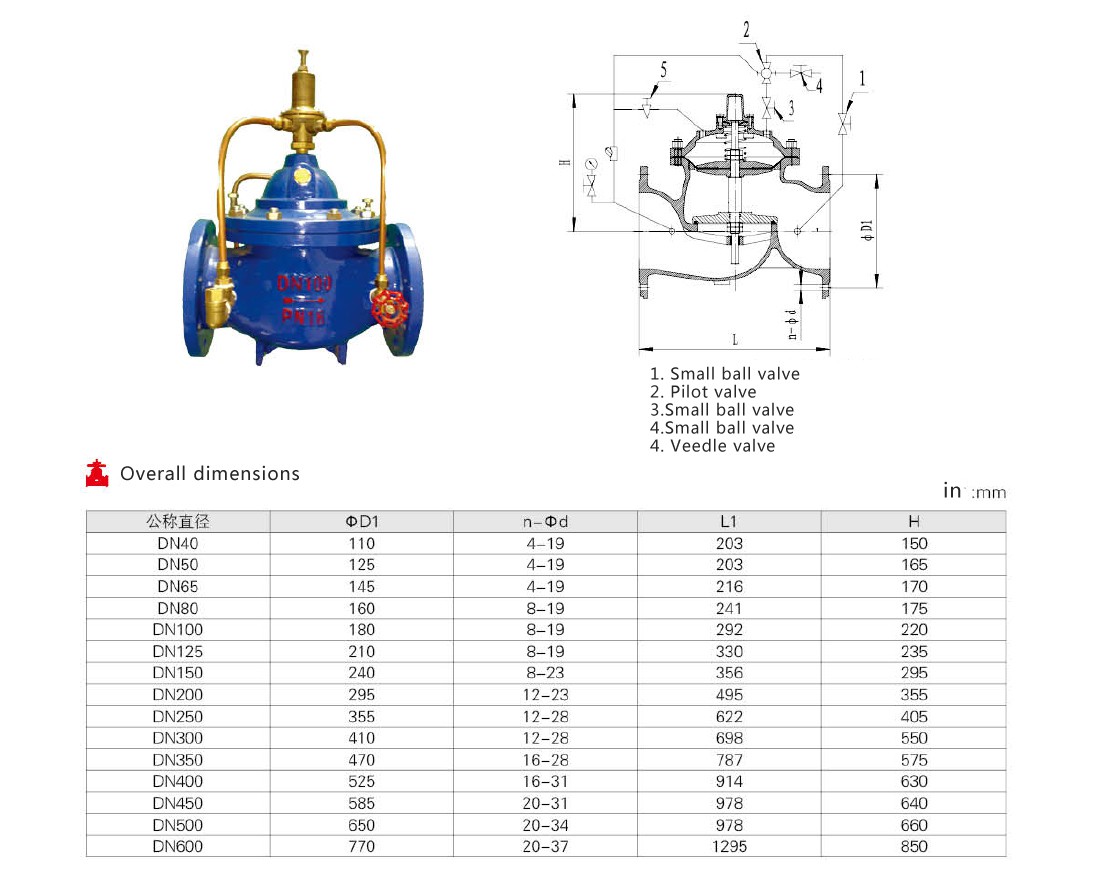

200X pressure reducing valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62

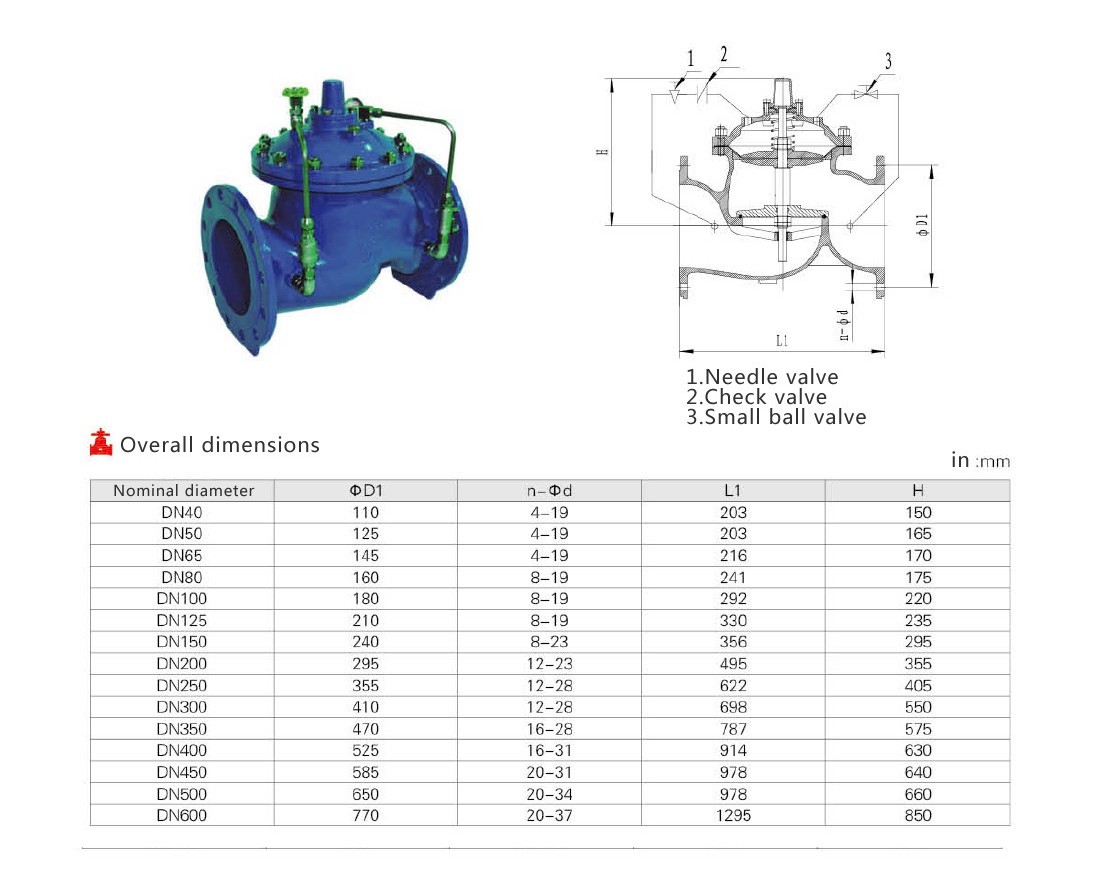

300X slow closing check valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62

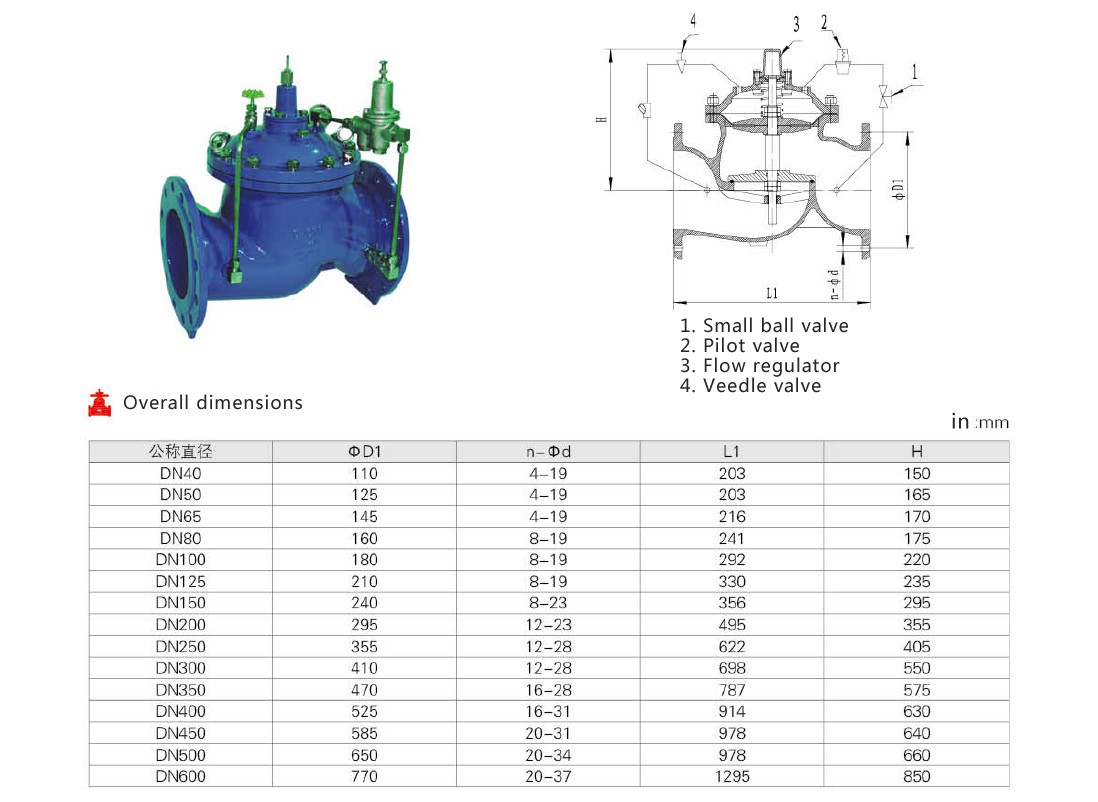

400X flow control valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62

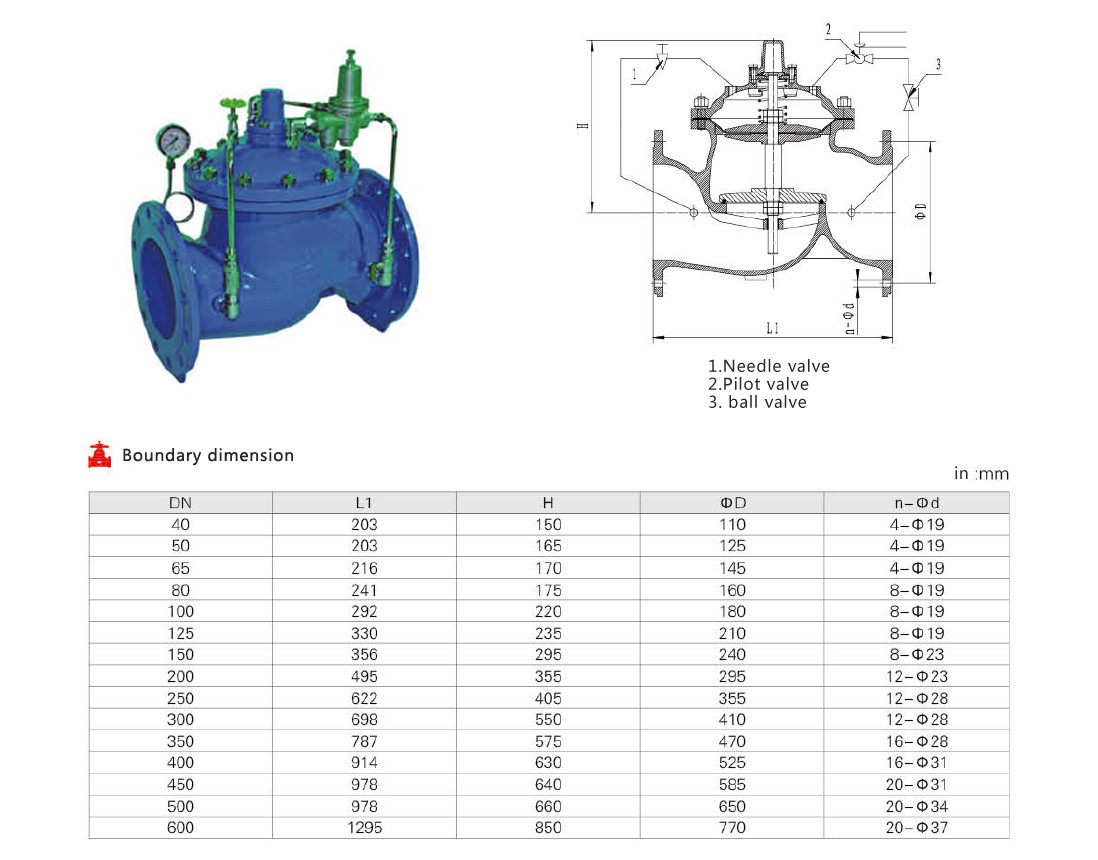

500X pressure relief valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62

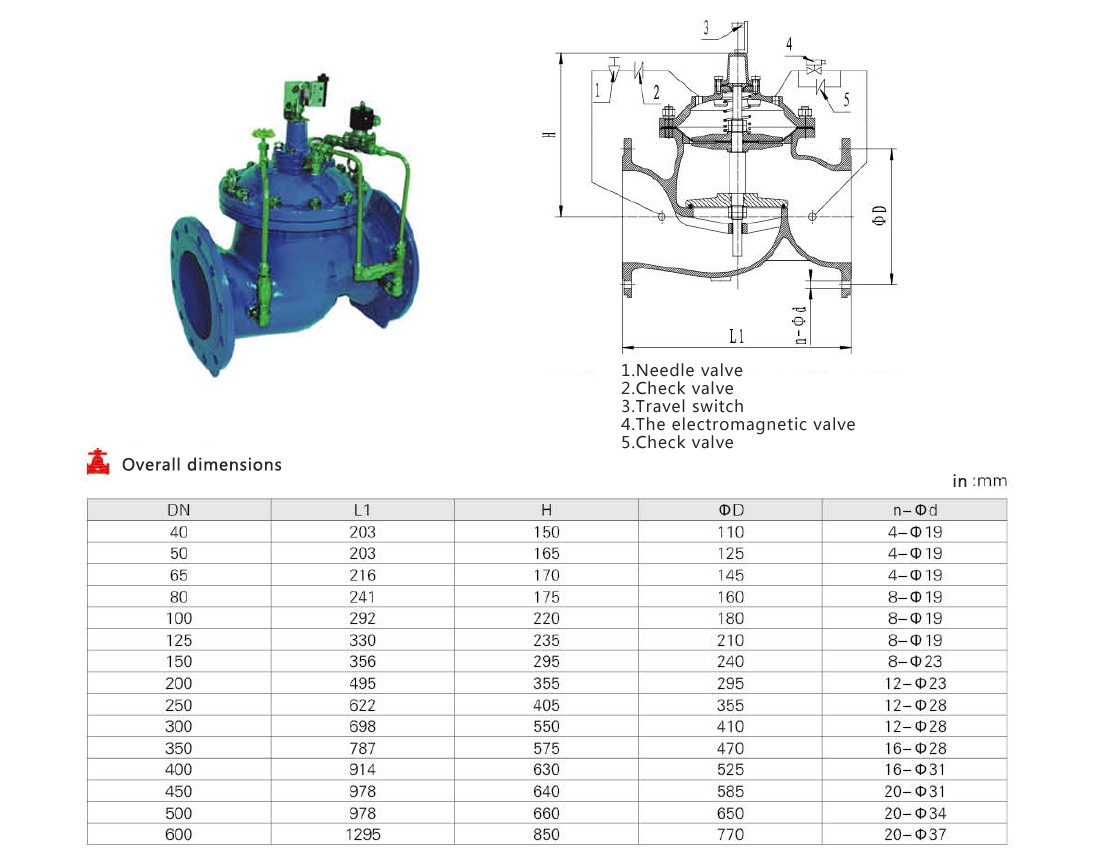

600X hydraulic electric control valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62

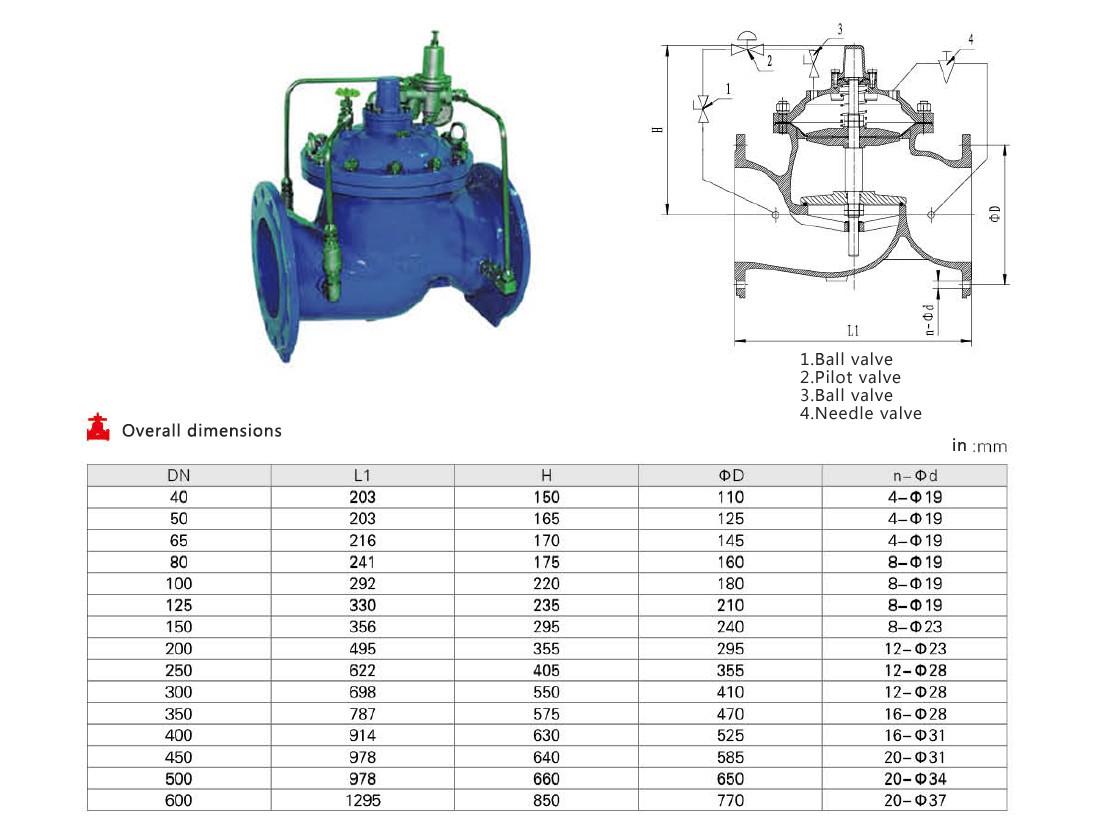

700X water pump control valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62



800X differential pressure bypass balance valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62

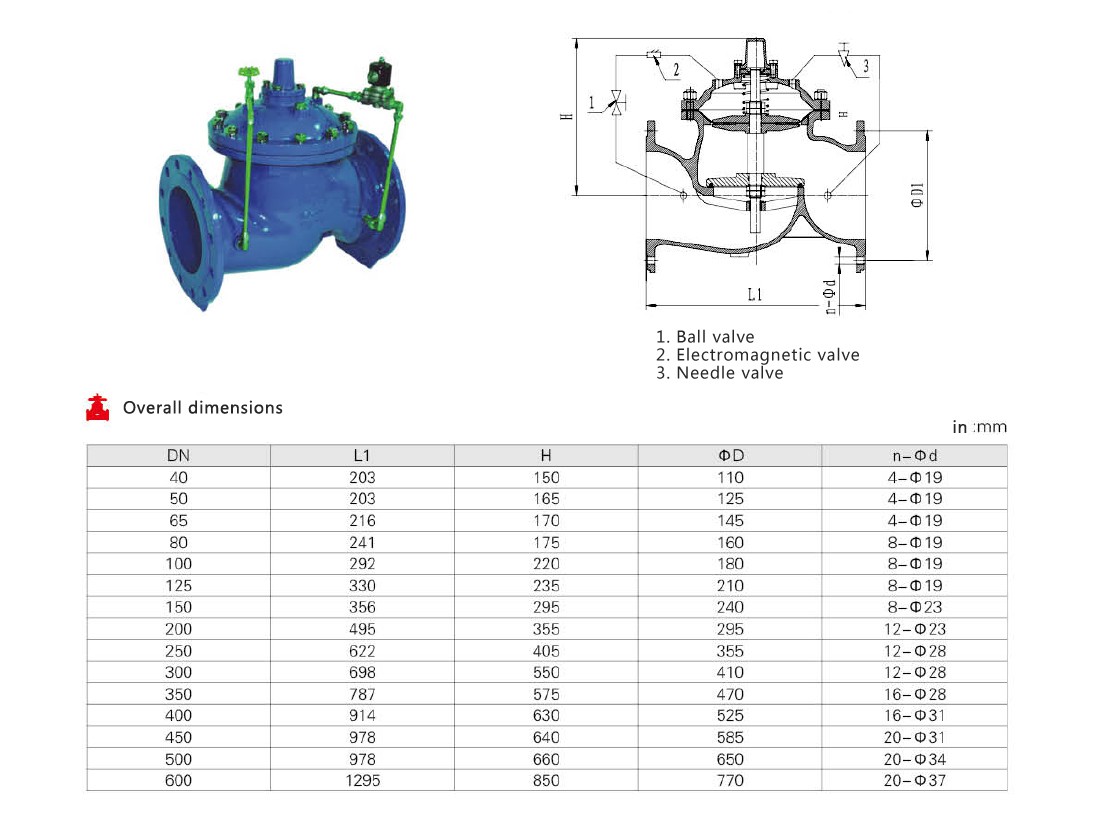

900X emergency shut-off valve
Body: QT450
Valve cover: QT450
Stem: 2Cr13
Disc: QT450 + NBR
Diaphragm pressure plate: QT450
Diaphragm: NBR + cloth nylon
Float: copper alloy
Catheter: T1
Spring: 1CR18Ni9Ti
Other guide elements: H62
