Self-propelled Electric Scissor Lifts
Aerial work platform

Features
HANGCHA self-propelled electric scissor lifts are the high efficient, safe and ideal solution for modern industry. Ideal for maneuvering in tight spaces, they’re excellent for indoor and outdoor application, all the functions, lifting, lowing, forward, and backward are under operator’s control. Easy maintenance and service after opening the battery cover, all key parts are easy access. With low noise level, and high reliability, HANGCHA self-propelled electric scissor lifts are always your best partner.

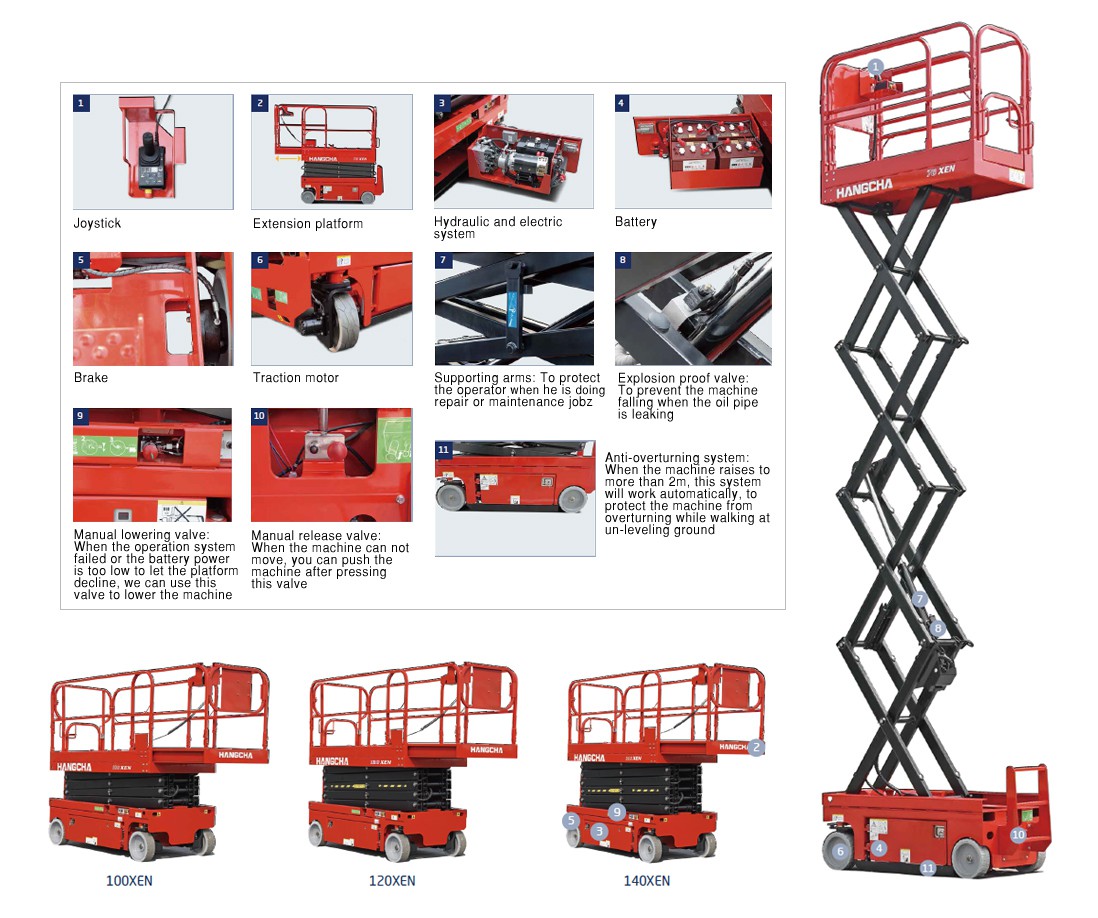

Characteristics
The proportional control system:Control the speed of Traveling and lifting as you need.
Control box:This box is including the function of Traveling and lifting, when you use the joystick, you can operate the machine With only one hand.
Self-leveling sensor. When the degree is more than 1.5°(width direction)/3°(lengthwise direction), it will alarm.
LED display: Easy for maintenance.
Steering system. The turning radius is small,it can work in the narrow space.
Extension deck: You can reach the working place by the extended platform.
Reasonable arrangement: All the parts of hydraulic system and electric system are located In the side doors, convenient to repair.
Safety: Alloy steel axis, to make sure the safety, reliable and effcient.
Internal charger: You can charge the battery directly, do not need to remove it from machine.
Hydrostatic transmission: Using hydrostatic transmission system technology.

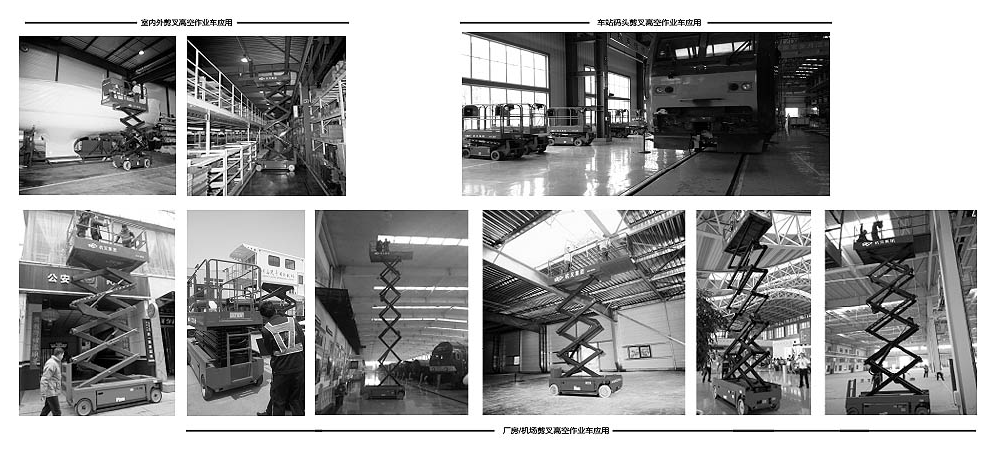

Application
Stations, dock, airport, powerstation, gym, big company ect.

Standard Equipment
The lifting system
The proportional control
Anti-overturning system
Control box
Internal Charger
Hour meter
Local battery
Options
Working lights(two lights)
220v socket
Beeper
Alarm light
Anti-overload system(Required by CE)
Pneumatic pipe
 Manufacturer HANGCHA
Vehicle Type   6.5 metres 7.8 metres 8.1 metres 10.0 metres 12.0 metres 14 metres
Safe operating capacity kg 350(2 persons) 350(2 persons) 340(2 persons) 450(3 persons) 320(3 persons) 320(3 persons)
Working height m 6.5 7.8 8.10 10 12 14
Overall Length m 1.89 1.89 2.47 2.80 2.80 2.80
Overall width m 0.81 0.81 0.81 1.20 1.20 1.20
 Overall height m 1.88 2.11 2.14 2.41 2.55 2.69
Size m 1.67X0.78 1.67X0.78 2.30x0.80 2.70x1.20 2.70x1.20 2.70x1.0
Turning radius (outside) m 1.70 1.70 2.10 2.75 2.75 2.75
Running speed km/h 0-3.3 0-3.3 0-4 0-3.0 0-3.0 0-3.0
Lifting/descending speed mm/s 13±2/29±4 15 ±2/21 ±4 19±2/35±2 41 ±2/44 ± 7 56 ± 3 /44 ± 7 61 ± 5/60 ± 5
Battery V/Ah 24/210 24/210 24/210 24/340 24/340 24/340
Gradeability % 25 25 25 25 25 25
Weight kg 1250 ±30 1380 ±30 1700 ±30 2500 ±30 2730 ± 30 2760 ±

Products and specifications are subject to change without prior notice.
