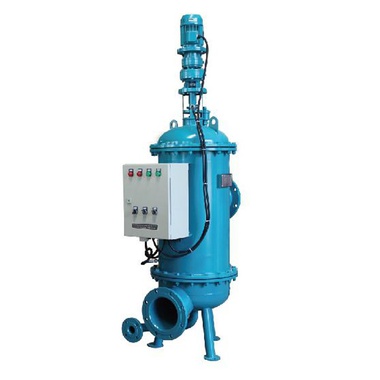

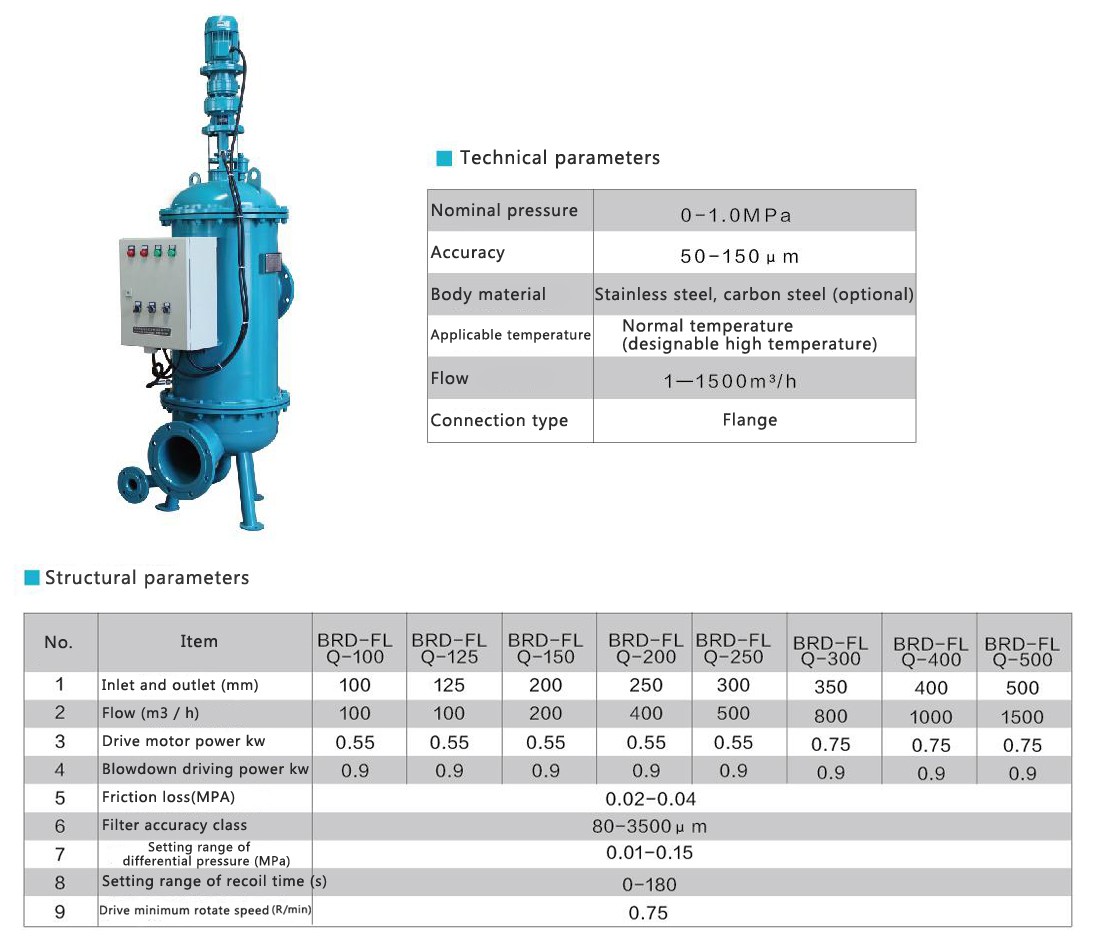

BRD high efficiency backwash filter

BRD高效反冲洗过滤器

■产品概述
全自动高效反冲洗过滤器是公司在引进国外自动反冲洗过滤器的基础上研制和开发的产品之一(专利号:L201420138615.6)。具有结构合理、性能可靠、自清洗效果好、维护使用方便等特点,是传统的(以颗粒滤料作介质)过滤的更新换代产品,广泛应用于冶金、石油化工、煤炭加工、造纸、电力等行业。

■ Product Overview
Full automatic high efficiency backwash filter is one of the products developed by the company on the basis of introducing foreign automatic backwash filter (Patent No.: l20142138615.6). It has the characteristics of reasonable structure, reliable performance, good self-cleaning effect, convenient maintenance and use. It is a renewal product of traditional (particle filter material as medium) filtration, widely used in metallurgy, petrochemical industry, coal processing, papermaking, electric power and other industries.

■工作原理
工作时,液体从入口进入过滤器,其中一部分液体从中间的分流管中进入过滤器上部,液体同时从滤元上下端口同时进入,通过滤芯后在出口处汇集流出,颗粒杂质被拦截、积累形成滤饼,使过滤器进出口产生压差逐渐变大,表明滤饼达到一定厚度。当进出口压差达到设定压差值或设定时间,自清洗程序启动,电机驱动内部排污吸嘴对准滤筒并开启排污阀,通过水流的逆向流动冲刷滤筒内表面将杂质排出,然后关闭排污阀,排污吸嘴对准下一只滤筒,进行反清洗。所有滤筒逐个清洗后,整个反冲洗过程完成。

■ working principle
During operation, the liquid enters the filter from the inlet, and part of the liquid enters the upper part of the filter from the middle shunt pipe. At the same time, the liquid enters from the upper and lower ports of the filter element at the same time. After passing the filter element, it collects and flows out at the outlet. The particle impurities are intercepted and accumulated to form the filter cake, which gradually increases the pressure difference between the inlet and outlet of the filter, indicating that the filter cake reaches a certain thickness. When the pressure difference between the inlet and outlet reaches the set pressure difference or the set time, the self-cleaning program is started, the motor drives the internal blowdown suction nozzle to align with the filter cartridge and opens the blowdown valve, then the impurities are discharged by flushing the inner surface of the filter cartridge through the reverse flow of water, then the blowdown valve is closed, and the blowdown suction nozzle is aligned with the next filter cartridge for back cleaning. After all filter cartridges are cleaned one by one, the whole backwashing process is completed.

■产品特点
1)全自动在线连续过滤,反冲洗时流量不间断,无需系统停机,减少停机与运转成本。
2)低表面流速过滤,利于滤饼形成,精细过滤效果更好,纳污量更大,反冲洗频率低,节约反冲洗用水。
3)采用独特的高性能滤网,压损低,反冲洗效果出色,使用寿命长,维护成本低。
4)自动控制系统界面良好,易于操作,可按实际需要调整过滤,高效转
5)紧凑型设计,单机即可实现大流量过滤,显著节省安装空间与施工成本。
6)高度集中,无需使用大量自动阀门、连接件、密封件;寿命长、可靠性高。
7)不产生一次性抛弃的过滤耗材,节约耗材成本及环保处理成本。
8)过滤压损极小,节省管路能耗。

■ product features
1) Automatic on-line continuous filtration, continuous flow during backwashing, no need for system shutdown, reduce shutdown and operation costs.
2) Low surface velocity filtration is conducive to the formation of filter cake, with better fine filtration effect, larger pollutant holding capacity, low backwash frequency and saving backwash water.
3) Unique high performance filter screen, low pressure loss, excellent backwashing effect, long service life and low maintenance cost.
4) The interface of the automatic control system is good, easy to operate, and the filter can be adjusted according to the actual needs, with high efficiency
5) Compact design, single machine can achieve large flow filtration, significantly saving installation space and construction costs.
6) Highly centralized, no need to use a large number of automatic valves, connectors, seals; long life, high reliability.
7) Do not produce disposable filter consumables, save the cost of consumables and environmental treatment costs.
8) Filter pressure loss is very small, saving energy consumption of pipeline.
